7 Panel Aluminium Folding Door – 5700 × 2400mm

7 Panel Aluminium Folding Door – 5700 × 2400mm

Bring your living room and outdoor entertainment area together with the 7 Panel Aluminium Folding Door – 5700 × 2400mm from our Vistafold range. With an overall frame width of 5.7 metres and a height of 2.4 metres, this model creates an expansive glazed feature across a larger wall opening.

The seven-panel arrangement offers the flexibility to open the door according to your selected configuration when you want to connect the spaces. When closed, the glazed panels maintain views of your patio or garden and allow natural light into the room.

For a doorway of this width, consider how people will move between your indoor seating, dining area and patio. Planning the stacking side alongside your furniture layout helps keep those routes clear.

Glass Options and Prices

Choose from three glazing options:

• Clear Glass – R35,475.14
• Low-E Glass – R51,166.91
• Double Glazed – R42,819.76

Clear glass offers a clear view between your indoor and outdoor areas. Low-E glass uses a low-emissivity coating to help reduce heat transfer. Alternatively, double glazing combines two panes with an insulating gap.

If your project requires specific thermal-performance values, ask us to confirm the selected glass specification before ordering.

What Is Included?

Your seven-panel Vistafold folding door includes:

• Aluminium outer frame and seven-panel door configuration
• Your selected glass option
• One cylinder
• Latch hook lock
• Aluminium lever spring handle
• Folding-door hinges and operating hardware

Supply only. We do not offer installation or factory collection. Delivery is charged separately.

Choose Your Frame Colour

Select one of four frame finishes:

• White Gloss
• Bronze Matt
• Charcoal Matt
• Black Matt

Across a 5.7-metre frame, your colour choice forms a noticeable part of the room’s appearance. Consider the surrounding walls, flooring and existing window frames when selecting your finish.

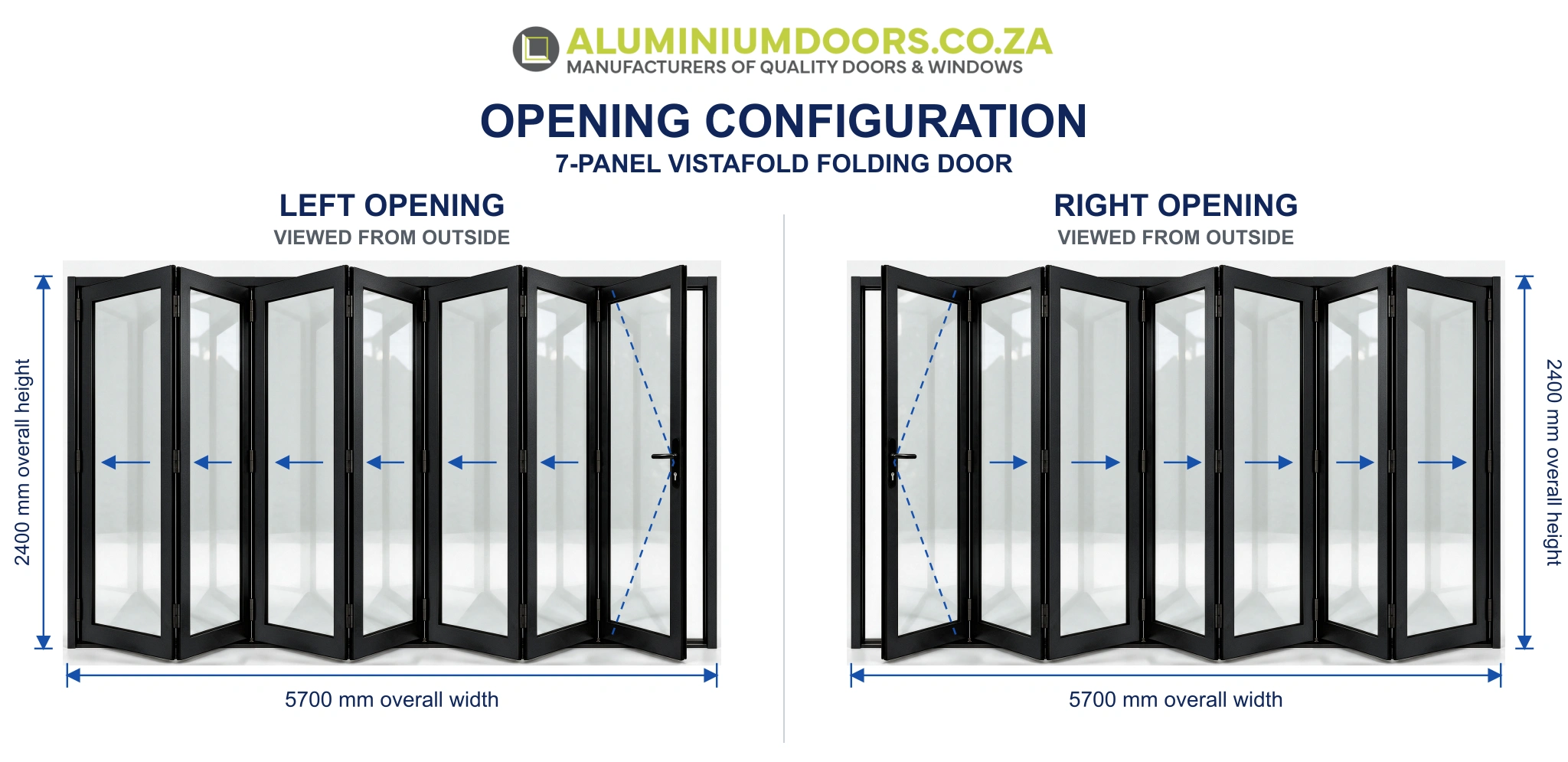

Select Your Opening Direction

Choose a left-opening or right-opening configuration, viewed from outside.

Refer to the product’s opening diagrams to confirm the panel arrangement and folding direction. Allow space for the panels to move and stack without obstructing furniture, adjacent doors or walkways.

The overall frame width is not the same as the clear passage width when the door is open. If you need a particular access width, ask our team to confirm it for your chosen configuration.

Confirm Your Measurements

This product has an overall frame size of 5700mm wide × 2400mm high.

Confirm the dimensions and fitting clearances with your installer before ordering. The listed product size does not specify the exact building opening required.

The prepared opening must be square, level and plumb. Check the finished floor levels and discuss any building alterations with your installer before arranging delivery.

Compare other sizes in our aluminium folding doors collection or explore our full range of aluminium doors.

About your online seller

Sold online by Aluminium Doors and Windows Online (Pty) Ltd, the company that owns and operates aluminiumdoors.co.za and aluminiumwindows.co.za. Contact our team for help confirming your door dimensions, glass selection and opening configuration before placing your order.

Delivery Information

Standard Gauteng delivery is R650 within 30 km, or R850 over 30 km and up to 50 km, calculated by road from our Gauteng dispatch point. Enter your full delivery address at checkout to confirm eligibility. Delivery beyond 50 km is not available through standard checkout. Collection is not available. Business address:

44, 12th Road, Kew, Sandton

Visit our delivery page for further information.

Supply Only and Delivery

Supply only. We do not offer installation or factory collection. Delivery is charged separately.

Please read our terms and conditions before ordering.

How Your Door Is Supplied

Standard supply includes an unassembled outer frame, assembled but unglazed door panels, and your selected glass supplied separately for fitting on site. Frame assembly, installation and glazing are required.

Select optional door assembly above at R300 per leaf. When selected, delivery is R2,000 for the whole basket within our existing delivery area. On-site installation is excluded.

Standard Sill and Outward Stacking

This door is supplied with a standard sill for exterior installations. Panels stack to the outside. Confirm the panel arrangement and handing, viewed from outside, before manufacture. Doors are not reversible after manufacture. Allow space for the panels and any separate access leaf to operate according to the approved configuration.

Handles and hinges are colour-matched to your selected frame finish. Flush bolts, guides, rollers and PVC weather seals are supplied in black.

Care and Maintenance

Keep tracks and drainage outlets clean, and maintain moving hardware according to the care and maintenance instructions.
