6 Panel Aluminium Folding Door – 5100 × 2100mm

6 Panel Aluminium Folding Door – 5100 × 2100mm

This 6 Panel Aluminium Folding Door – 5100 × 2100mm spans a generous 5100mm width across six connected glazed panels. It provides a flexible entrance for large patios, entertainment areas and living spaces where you want to open adjoining areas to one another.

The panels travel along the aluminium track and fold together towards the selected stacking side. Therefore, the door can expose a much larger portion of the opening than a conventional sliding door with overlapping panels.

When closed, the six panels allow natural light into the room and provide a broad view. When opened, they help connect indoor living areas with patios, gardens and covered outdoor spaces.

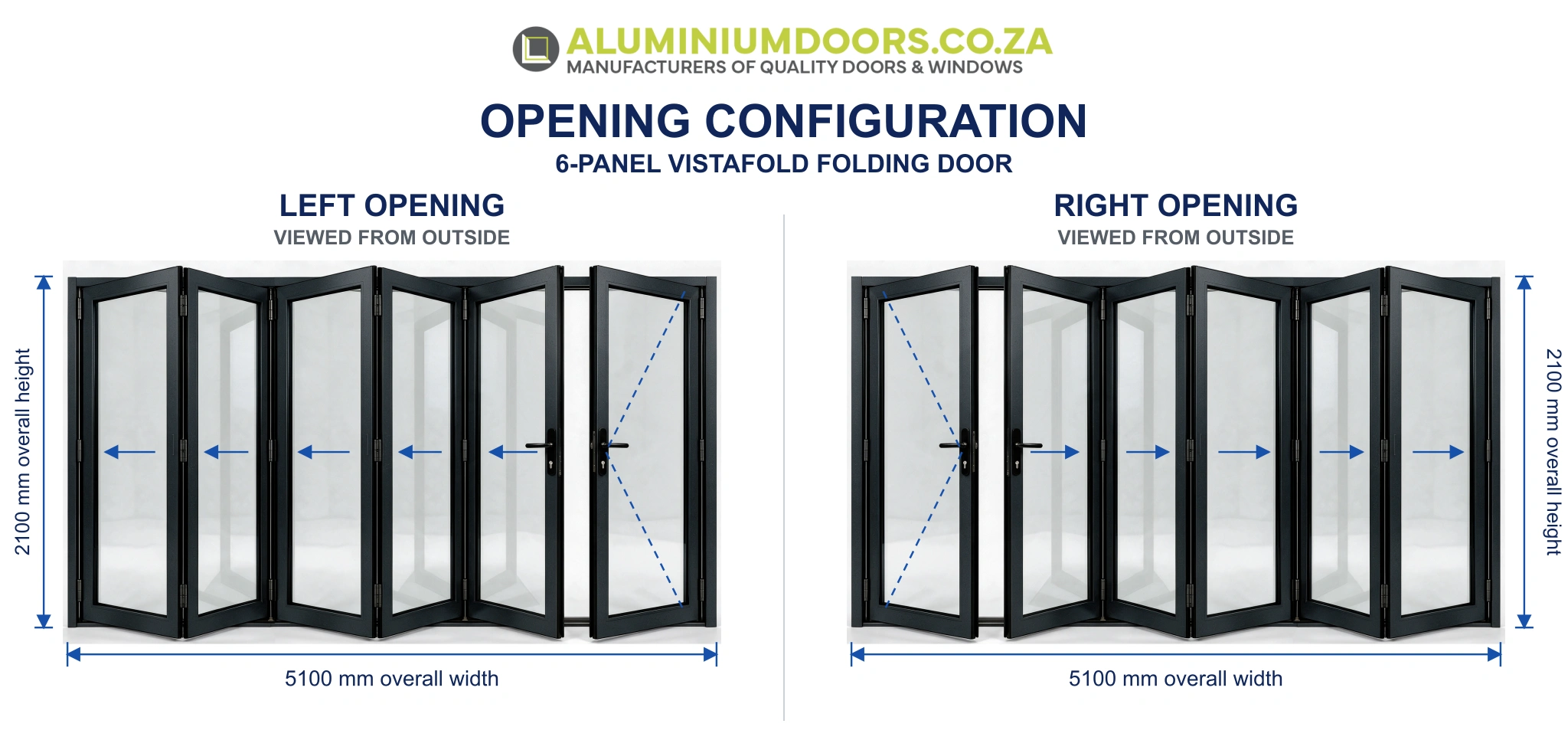

Please check the technical configuration drawing in the product gallery before ordering. It shows the traffic door, panel movement and stacking position as viewed from outside.

Glass Options and Prices

Choose from three glass options:

• Clear glass – R35,069.25
• Low-E glass – R51,051.95
• Double Glazed glass – R43,024.95

All listed prices include 15% VAT.

Clear glass provides an uninterrupted view and allows generous natural light into the interior. Double Glazed glass uses two panes to improve insulation compared with ordinary single glazing. Alternatively, Low-E glass helps reduce heat transfer through the glazed surface.

Each price covers the complete six-panel door with your selected glass.

What Is Included?

Your 5100 × 2100mm Vistafold folding door includes:

• Aluminium outer frame
• Six connected folding panels
• Your selected glass
• One cylinder
• Latch hook lock
• Aluminium lever spring handle
• Folding-door track and operating components
• 15% VAT

Choose Your Frame Colour

Select one of four powder-coated aluminium finishes:

• White Gloss
• Bronze Matt
• Charcoal Matt
• Black Matt

These finishes allow you to coordinate the door with existing aluminium windows, doors, rooflines and other architectural features.

Select the Opening Direction

Choose the required opening direction as viewed from outside.

Left-opening and right-opening configurations mirror one another. Therefore, study the opening-configuration illustration carefully before selecting your option.

The drawing will help you confirm:

• The traffic-door position
• The direction in which the panels move
• The side where the folded panels stack
• Whether you require a left-opening or right-opening door

Always choose the opening direction while viewing the doorway from the exterior of the building.

Benefits of a Six-Panel Folding Door

A conventional sliding door leaves part of its opening covered by overlapping panels. In contrast, this folding system allows the connected panels to fold towards the side.

This 5100mm-wide door may suit:

• Large covered patios
• Entertainment areas
• Braai rooms
• Living rooms opening onto gardens
• Indoor-outdoor dining areas
• Hospitality venues
• Offices and meeting spaces
• Residential renovation projects

The 2100mm height provides a familiar standard-height format, while the wide six-panel layout creates a substantial glazed feature.

Confirm Your Measurements Before Ordering

This product measures 5100mm wide × 2100mm high. These measurements refer to the overall product dimensions and should not automatically be treated as the required building-opening measurements.

Before placing your order, confirm:

• The overall product dimensions
• The six-panel configuration
• Your selected glass
• The required frame colour
• The opening direction viewed from outside
• The dimensions and condition of the prepared opening

The opening must be square, level and plumb so that the outer frame, track and folding panels can operate correctly.

Compare other sizes and panel configurations in our aluminium folding doors collection. You can also browse the complete aluminium doors range.

Manufactured by K Parker Joinery

K Parker Joinery has manufactured aluminium doors and windows since 1997. The company is a member of AAAMSA Fenestration and SAGGA and a SAGGA member.

We manufacture this Vistafold door as a complete six-panel system using your selected dimensions, glass, powder-coated finish and opening configuration.

Delivery

We deliver within a 50km radius of Sandton for R850. The website adds this charge during checkout.

You may also collect your order from:

44, 12th Road

Kew

Sandton

Visit our delivery page for further information.

Installation Available

Installation is available through K Parker Joinery. Please visit our installation page to enquire.

How Your Door Is Supplied

Standard supply includes an unassembled outer frame, assembled but unglazed door panels, and your selected glass supplied separately for fitting on site. Frame assembly, installation and glazing are required.

Fully assembled and glazed supply is available on request. Please enquire for a quotation. On-site installation is excluded from this assembly and glazing service.

Standard Sill and Outward Stacking

This door is supplied with a standard sill for exterior installations. Panels stack to the outside. Confirm the panel arrangement and handing, viewed from outside, before manufacture. Doors are not reversible after manufacture. Allow space for the panels and any separate access leaf to operate according to the approved configuration.

Handles and hinges are colour-matched to your selected frame finish. Flush bolts, guides, rollers and PVC weather seals are supplied in black.

Care and Maintenance

Keep tracks and drainage outlets clean, and maintain moving hardware according to the care and maintenance instructions.

Aluminiumdoors.co.za is part of K Parker Joinery, manufacturing doors and windows since 1997. Speak to our team if you need help choosing the right door for your home.
